Nor1290 Lydintensitet probe

The probe head has two adjustment knobs. The uppermost knob is for compensating spacer distance and center displacement, while the lower is for locking the probe firmly into an angle. The angular adjustment has well-defined mechanical steps for your convenience.

The detachable probe head is equipped with a standard 7-pin lemo connector with firm attachment via a screw-lock. It may be connected directly to the top of the Nor150, extended via a standard microphone cable or mounted on top of the probe handle rod. This ensures maximum flexibility and gives you full configuration freedom, while keeping the cost of additional equipment such as extension cables to a very minimum.

Nor1290 probe kit content:

• Nor1290 adjustable probe head.
• Two phase-matched GRAS 40GI 1/2” prepolarised microphones.
• 90° angular 1/2” to 1/4” adapter.
• Two impedance matched GRAS 26CC 1/4” CCP preamplifiers.

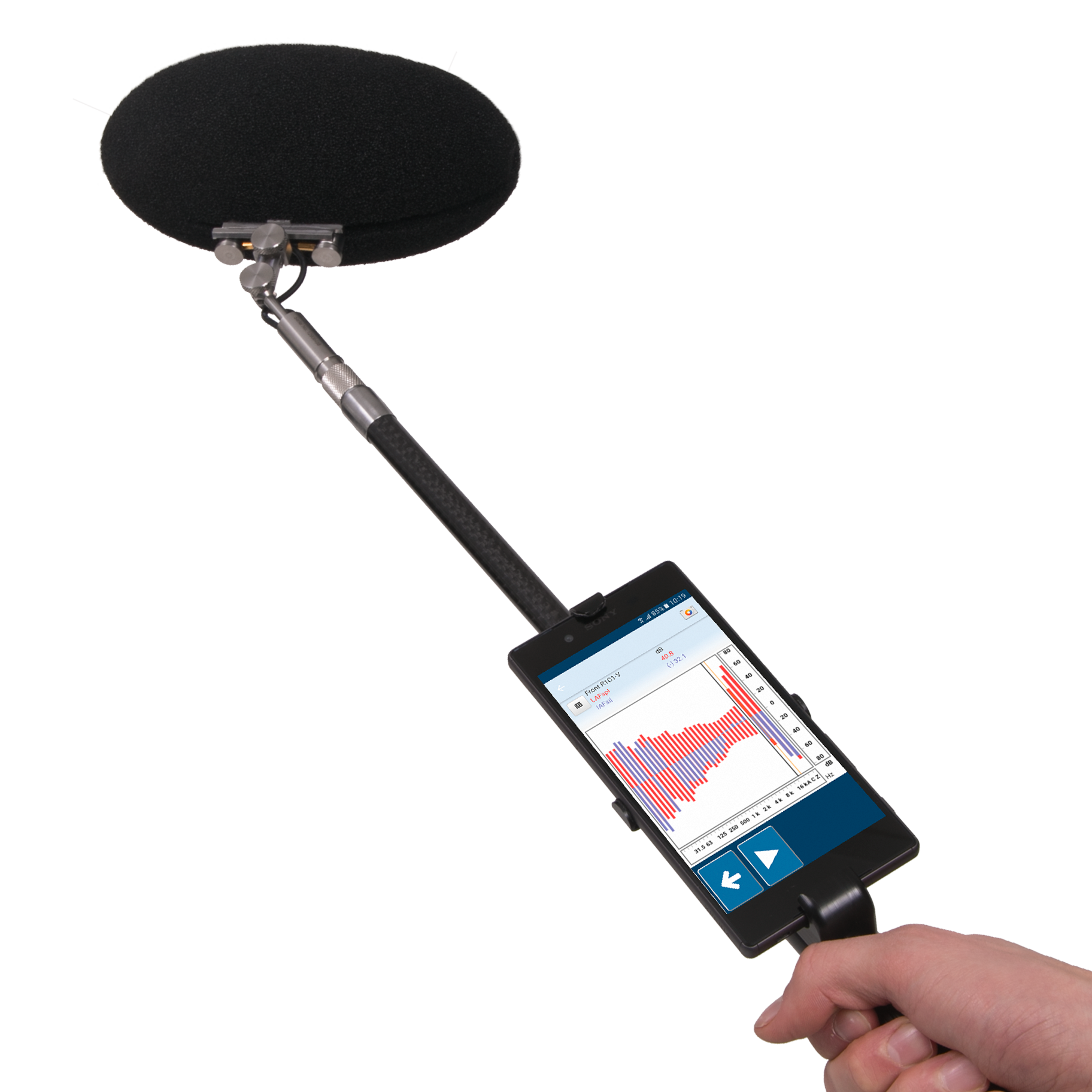

• Probe handle w/ smartphone mount.
• Lightweight 1m carbon fibre rod with lemo connectors.
• Nor1294 Phase Verification Coupler.
• Windscreen.
• Set of spacers.
• 2 m extension cable.

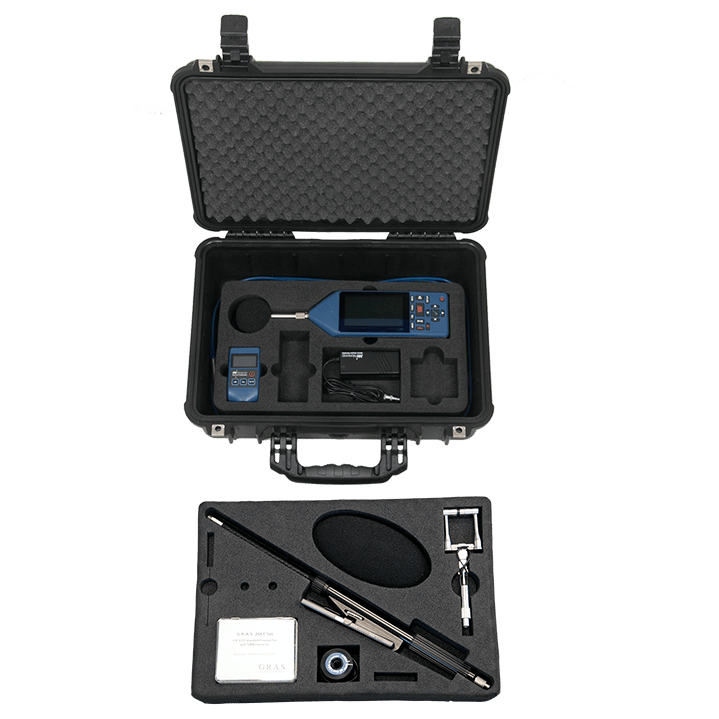

• Two-level hard case with room for all contentents mentioned above plus Nor150, power adaptor and SPL calibrator Nor1255/Nor1256.
