Bygningsakustikk med Nor150 (2ch)

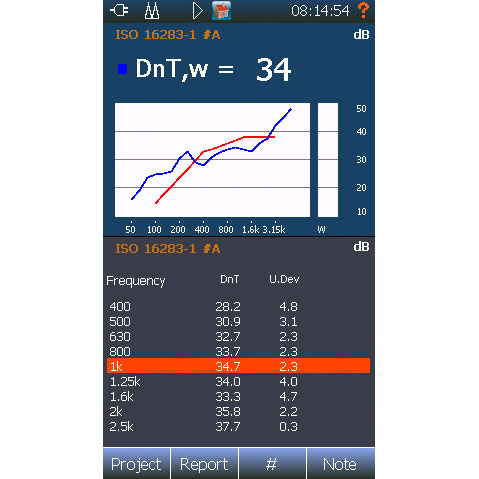

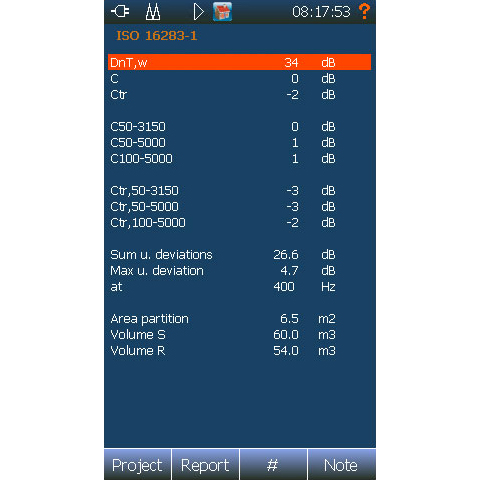

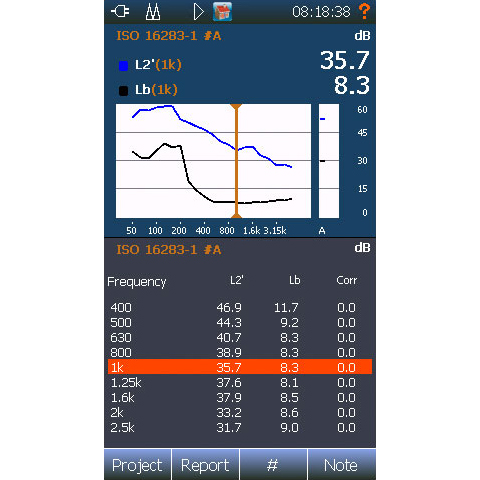

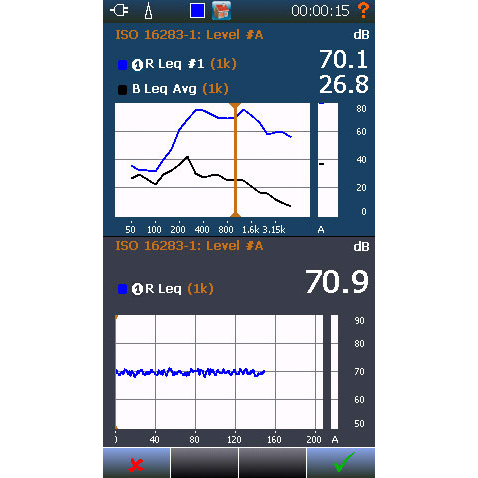

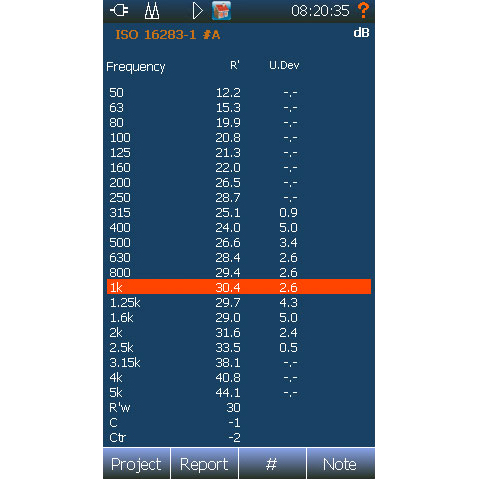

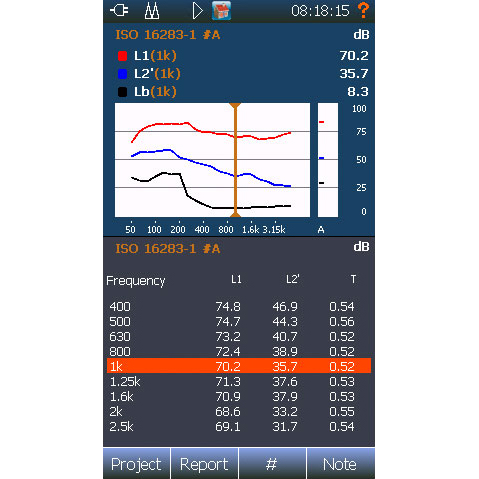

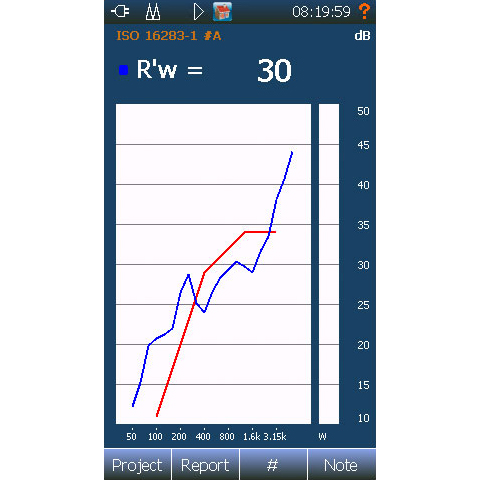

The Nor150 sound analyser offers a built-in signal generator for excitation of the source room level measurements or for excitation of the reverberation time measurements. The results are measured in accordance with the ISO 16283 Standard requirements. With additional background level measurement results, an on-board calculation of the final airborne sound insulation indices DnT and Rw in accordance with ISO 717 is performed. Of course, the similar possibility is available for impact sound insulation index Ln,w using a tapping machine such as the Nor277.

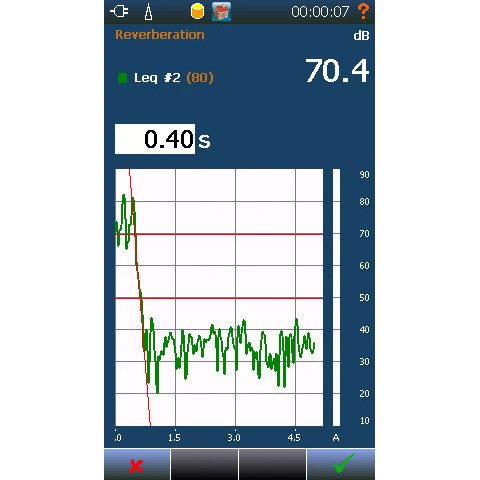

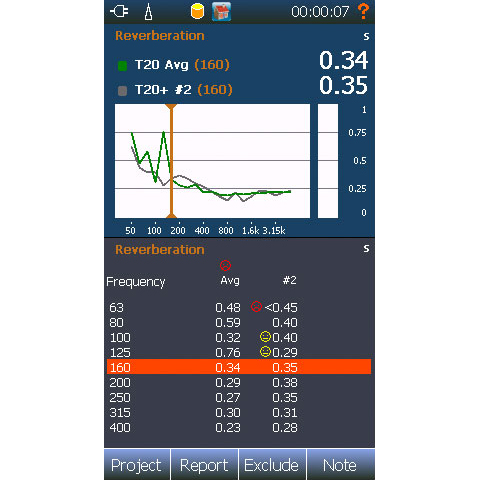

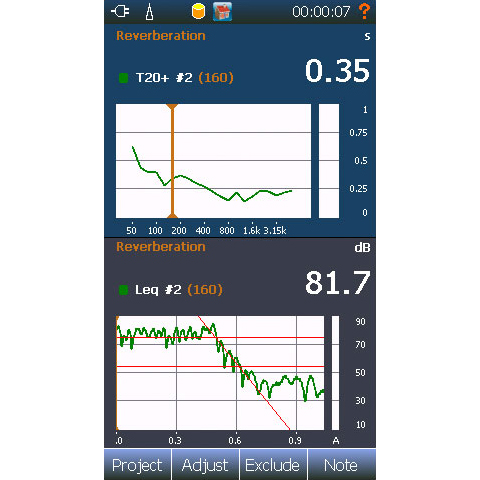

The reverberation time excitation may alternatively be based on an impulsive source. In any case, results for T15, T20 and T30 are calculated in parallel. The analysers are seamless integrated with the Nor850 software, either as a remote frontend to the Nor850 Measurement System, or as a manual measurement tool for exporting measurement files to the post processing Nor850 Reporting System. Complete calculation of airborne, facade and impact sound insulation indices in accordance with international and national Standards.
