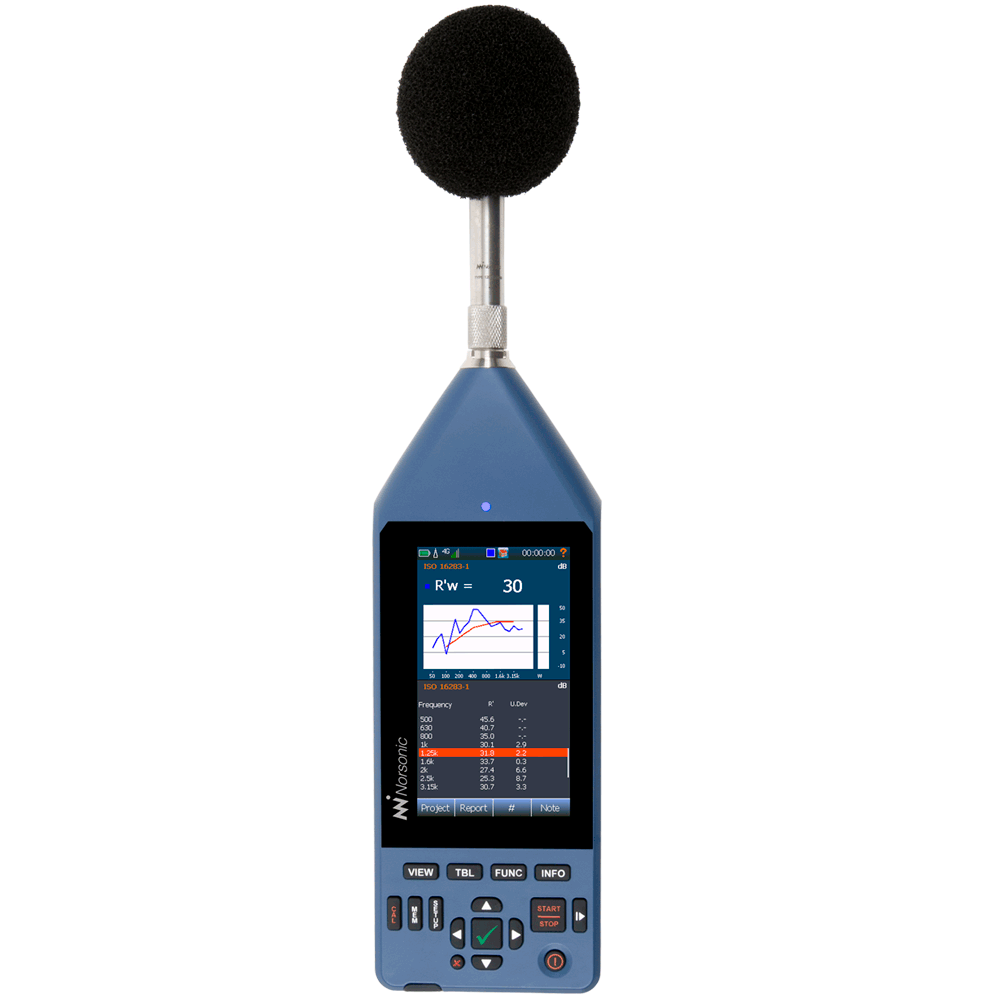

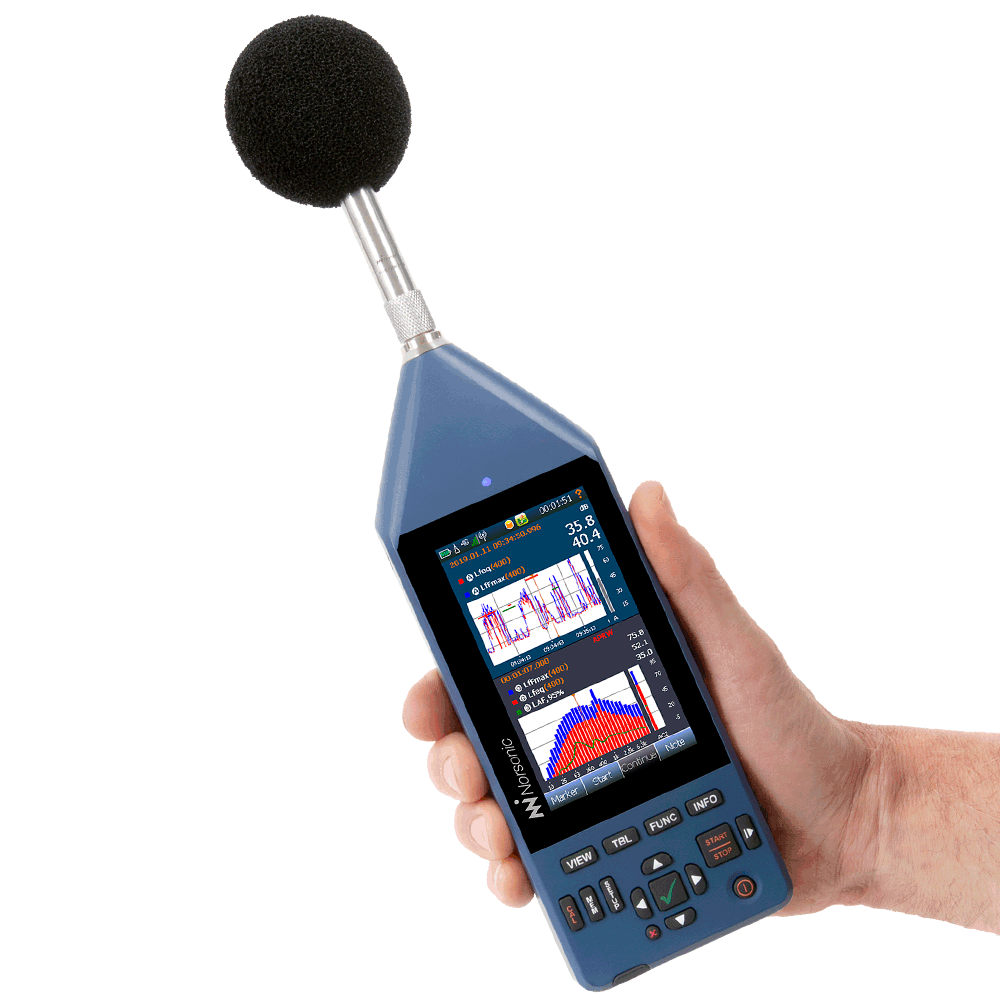

Nor145 er vår topp moderne støymåler
Den er enkel i bruk da den har en stor touch-skjerm, intuitive menyer og egendefinerte brukeroppsett. Samme brukergrensesnitt som Nor150 støymåler, men pakket inn i en mindre og lettere kasse.
Nor145 er en en-kanals støymåler optimalisert for enkel tilkobling til NorCloud (skybasert tjeneste), NorVirtual App, eller Nor850, gjennom det innebygde WLAN og 4G LTE modem.
Videre muligheter i Nor145 er GPS, intern web server for fjernstyring på smarttelefon, lesebrett eller PC, og avanserte kommentar/tekst notater.
Alle disse mulighetene gjør Nor145 til den perfekte verktøyboksen for feltmålinger eller som en del av et støyovervåkningsystem.
Nor145 basic:
inkluderer A, C og Z veienettverk, 1/1 & 1/3 oktavfiltre med måling av Leq, LeqI, LE – lydeksponeringsnivå, SPL, Lmax, Lmin med parallell deteksjon av Fast, Slow og Impuls tidskonstanter, statistisk beregning av Ln og TMAX5. Måleresultatene analyseres som globale verdier i tillegg til to parallelle tidsprofiler med en justerbar oppløsning fra 5 ms til 24 timer og en bevegelig tidsprofil. Etterklangstid i 1/1 oktavbånd basert på impulseksitasjon. Avanserte trigger muligheter. Stemme- og tekstkommentarer.
Tilbehør inkludert:
Mikrofon og forforsterker må bestilles separat. Velg mellom flere alternativer.

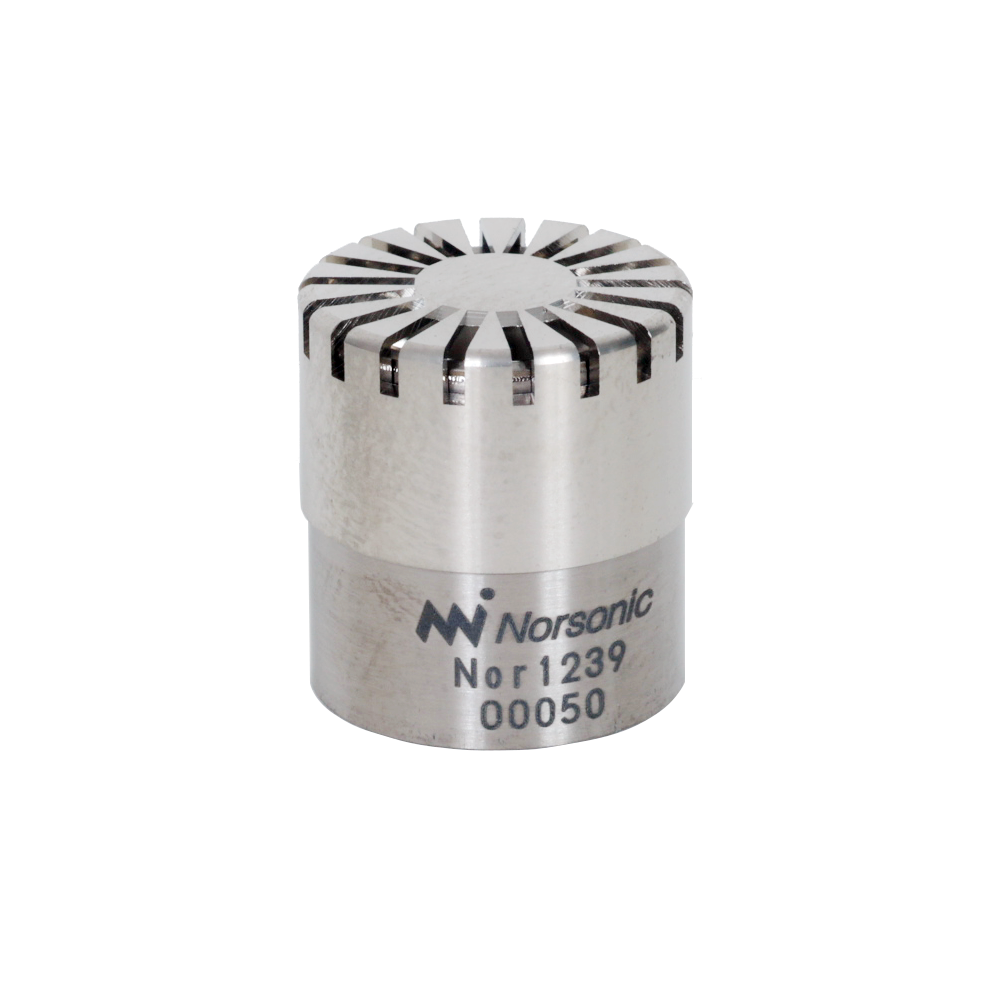

Standard alternativ er Nor1209 forforsterker og Nor1239, ½” free/field mikrofon.
Krever BA-BASIC opsjon.
Inneholder
Krever BA-BASIC opsjons pakke.
GPS brukes for posisjon og nøyaktig tidssynkronisering. Tidssynkronisering er spesielt nyttig når flere Nor145 enheter brukes for å måle den samme støy-hendelsen, f.eks. ved overvåking av en eksplosjon. GPS-posisjonen er lagret som en del av målefilen. Det kan også angis å være en del av filnavnet.
Med et eksternt IP-kamera kan du lage hendelsesbaserte bilder. Bilder tatt under en måling er merket som hendelser i L/t grafen og kan vises i Nor145, i NorCloud eller i NorReview.
Denne opsjonen kan ikke ettermonteres og må derfor bestilles sammen med instrumentet.
Ordre kode: Nor145/01
Med denne opsjonen kan man koble instrumentet til Norsonics skybaserte støyovervåking – NorCloud.
ENV-Advanced opsjonen må være installert.
Fungerer parallelt med 1/1- eller 1/3-oktav analyse.

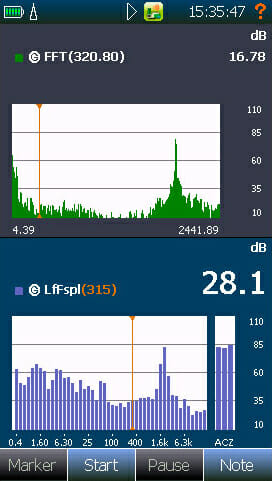

Split view with FFT and 1/3 octave. The link cursor feature connects the cursor in FFT and 1/3 octave displays, making it easy to manoeuvre in the frequency domain.
The ultrasound option adds the following features to a standard Nor145:
A ¼” microphone is recommended to measure correctly due to the limitation in the frequency range of a standard ½” microphone.
Krever ENV-Advanced opsjonen
Denne opsjonen kan ikke ettermonteres og må derfor bestilles sammen med instrumentet.

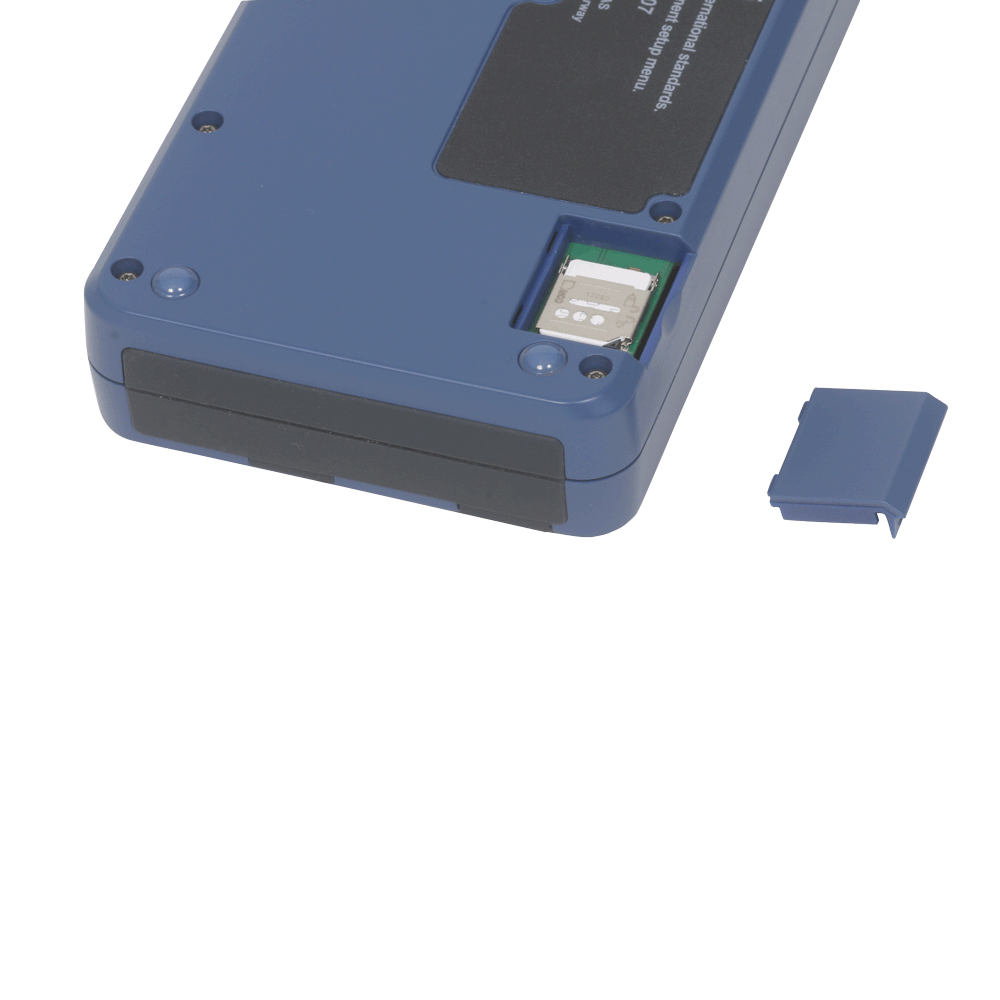

Norsonic kan levere SIM-kort med høyere sikkerhet. Pris på forespørsel.
Full remote programming support for the environmental mode. Ideal tool for system integrators requiring a sound level meter as a frontend to their application. Including support for Nosie Compass and Weather station.
The use of API option requires a purchase of Nor1056, DLA – Developer License Agreement. This grants 8 hours free support with direct access to API developers’ team
Requires ENV-Advanced.
Ordercode:
Works with basic instrument.
Order code: Nor145/17.

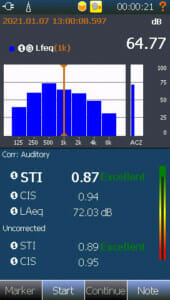

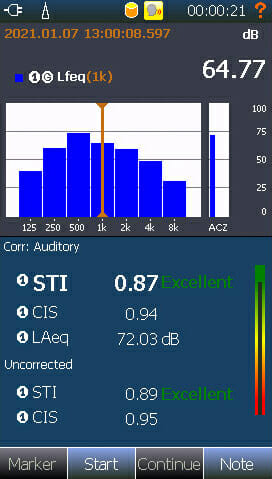

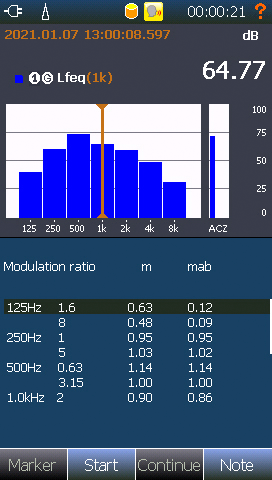

STIPA mode is easy and intuitive to use. The display is composed of a fixed view with two frames. The upper shows each frequency band, while the lower shows the measured values including a bar graph.
STIPA – By selecting the lower part of the display and pressing the TBL button, the two modulation indexes for each of the STIPA-octaves will be displayed.

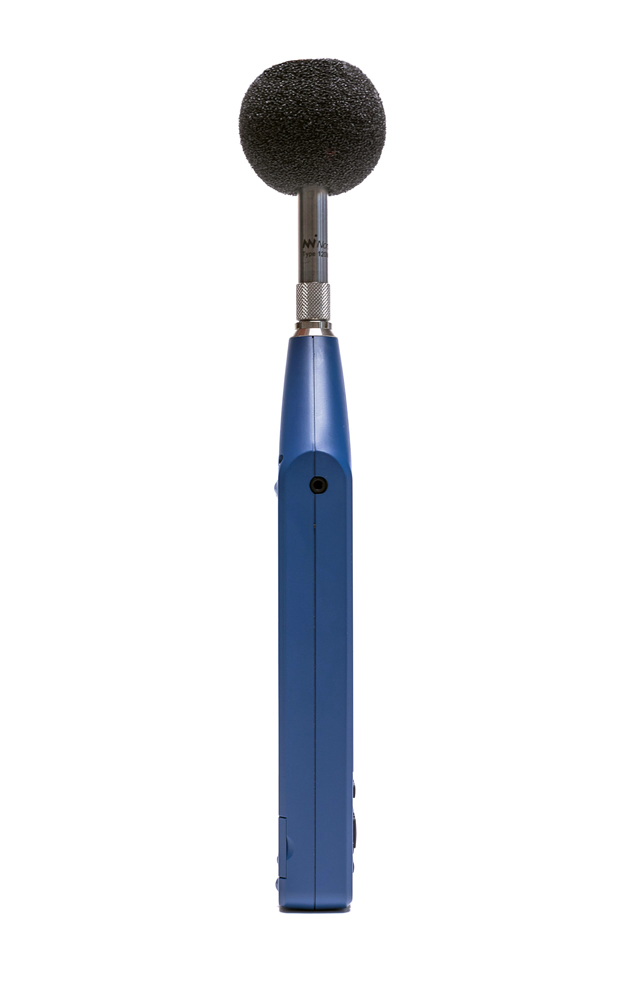

Nor145 støymåler leveres med ½” forforsterker Nor1209 og ½” målemikrofon Nor1239.
Den er i samsvar med den siste revisjonen av følgende nasjonale og internasjonale standard inkludert endringer, alle type 1 / klasse 1; IEC 61672, IEC 61260, DIN 45657, ANSI S1.4, ANSIS1.11 og ANSI S1.43. Den er også i samsvar med de foreldede lydnivåmålerstandardene IEC 60651 og IEC 60804.
Simultaneous measurement of SPL, Leq, LeqI, LMax, LMin, LE, LEI, LPeak, Ln and Tmax5.
Time weighting functions: Fast, Slow and Impulse (Simultaneous).
Spectral weighting functions: A, C and Z – weighting (Simultaneous).
Frequency analysis: 1/1 and 1/3 octave real time filters from 0,4 Hz to 20 kHz.
Statistical calculations: 8 individual adjustable percentiles from L0,1% to L99,9%, The statistical calculations are performed in real time within each frequency band and for each profile period if period length is set longer than 2 minutes. Class width is 0,2 dB. Dynamic range is 130dB.
Overall measurement duration: 1 sec – 7 days. (If set to Repeat or Synchro mode a new measurement will be started automatically, with no time gap between each measurement).
Time profile A resolution: 5 ms – 24 hours including full frequency spectra. From 1 sec if profile B or Moving is enabled.
Time profile B and Moving resolution: 1 s – 24 hours. A, C and Z – no frequency spectra.
Back erase in Pause mode: 0-20 sec free delectable graphical back erase.
12 and 48 kHz sampling rate / 8 , 16 and 24 bits / 0-120 sec pre-trigger.
One range covering 120dB without any range adjustments.
Self noise measured with 1/2” microphone with a nominal sensitivity of 50mv/Pa: 17 dBA.
Maximum RMS level 137 dBA, Maximum Peak level 140 dB PeakC.
Built in noise generator with Sine, White, Pink and 1/1 and 1/3 octave band passed filtered noise.

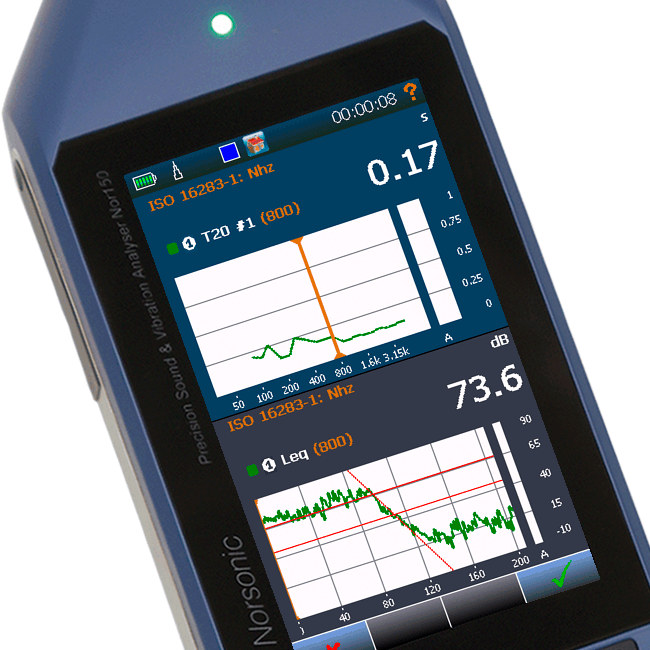

Parallel calculation of T15, T20 and T30 in addition to Tmax for Noise excitation and EDT for impulse excitation.
Sampling rate: 48 kHz.
Frequency resolution: 1.46 Hz or 2.92 Hz (FFT size 8192 or 16384 lines).
Upper frequency: 22 kHz
Functions: Auto spectrum, linear averaging.
Acquisition rate: ~700 ms – no overlap.
Display: Dynamic display zoom 1 – to 64 in power-of-two steps.
Time windowing: Hanning

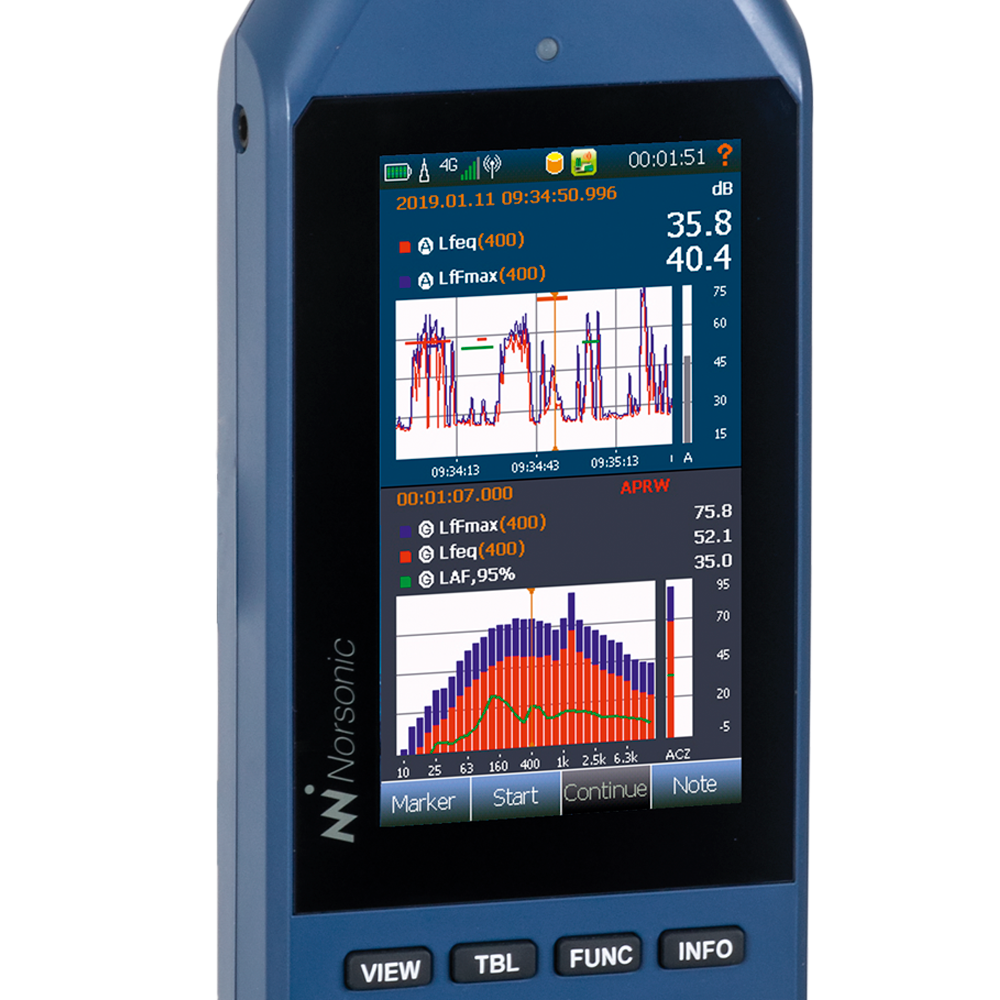

4,3″ colour display capacitive touch. Protected by an anti-smudge coated and scratch-proof glass.
Built in GPS
Support for external IP camera. With an external IP camera, you can make event triggered pictures. Pictures captured during a measurement is marked as events in the L/t graph and can be viewed on the Nor145, in NorCloud or NorReview.
Storage modes: Manual, Auto, Repeat and Synchro. Synchro synchronise the start of the next measurement to the next full hour.
Internal memory: 350 MB – not used for measurement storage.

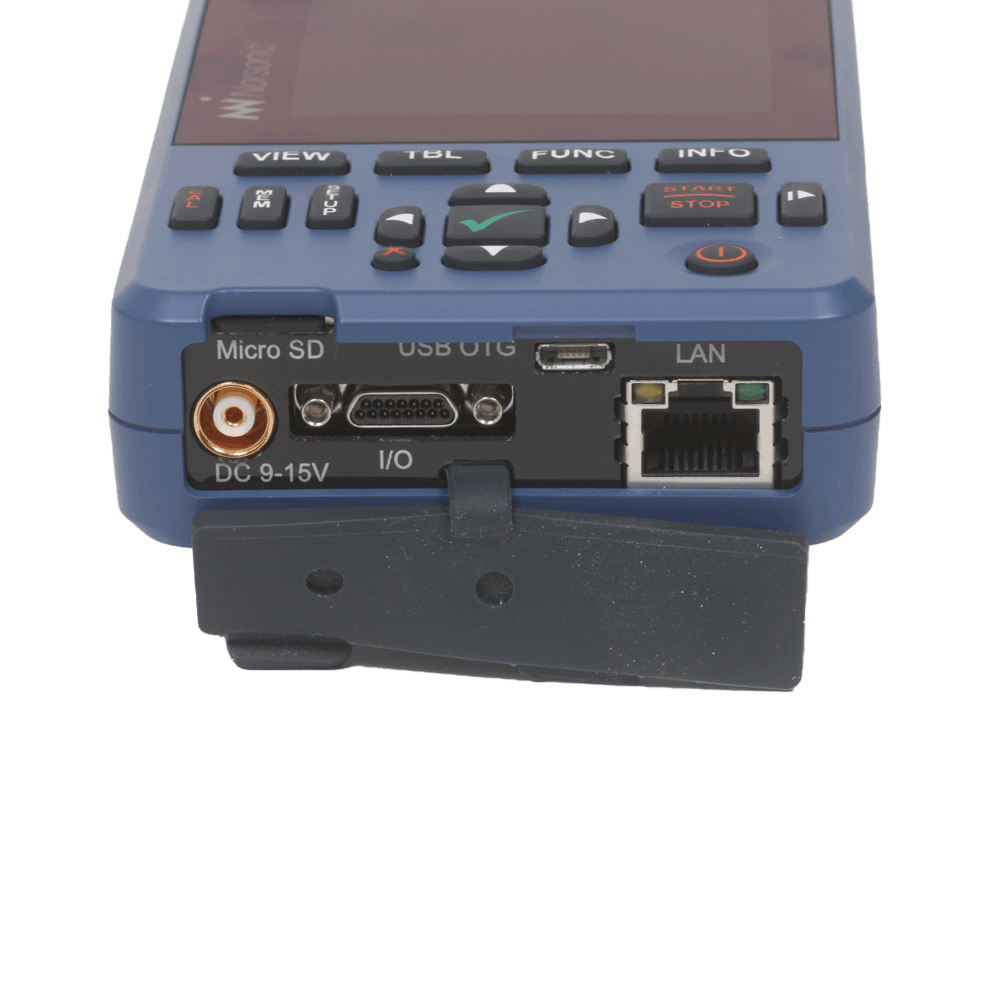

Micro SD card: Supports XC and HC standard. No limitation in max. SD card size.
Data transfer via LAN and USB.
Optionally built in GPRS – 3G/UMTS – 4G/LTE and Wifi infrastructure and hotspot.
Internal antenna supports 3G/4G. External antennas with diversity may be connected. External antenna supports also GPRS connection.
Microphone input: One microphone input. Supports standard 7 pin Lemo preamplifiers including SysCheck, Microphone heating, TEDS and IEPE.
Polarization voltage: 0
Preamplifier voltage: ± 15V.
Comment microphone: Via 3,5 pin mini jack.
AC out, 100mV full scale on 15 pin I/O socket.
3 pin mini jack headphone socket for replay of voice notes, listen to microphone AC signal or replay of audio recordings. Comment microphone for voice notes is connected to same plug.
Signal generator on 15 pin I/O socket with Pink, White, Bandpass filtered, sine and impulse noise.
Rechargeable 7 Ah Li-Ion batteries with built in fuel gauge.

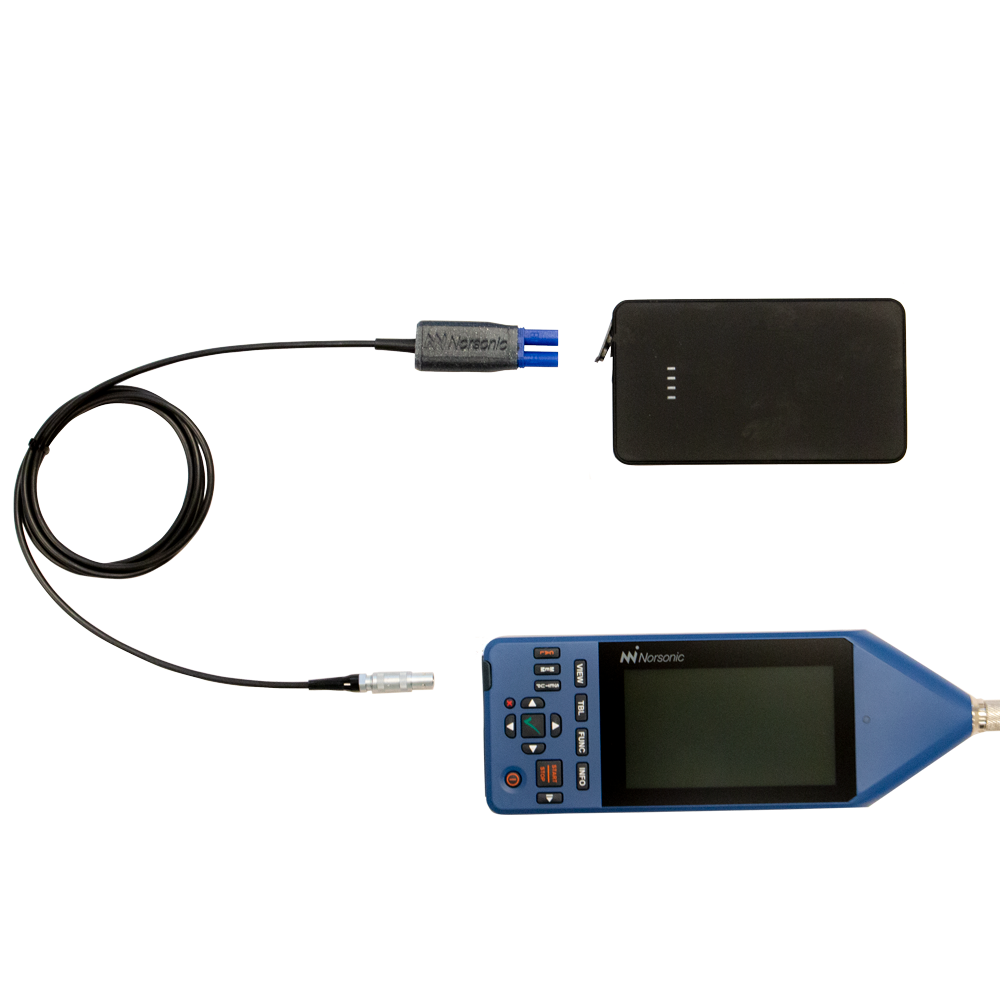

External power: 9 – 15Vdc 3-5Watt.
Typical battery lifetime: 8 hours.
Dimensions: 235 x 82 x 29 mm (ex. preamplifier and microphone LxWxH)
Weight : 535 g (including preamplifier and microphone)
Nor145, Precision Sound Analyser with A, C and Z weighting networks, Parallel time constants, Statistical calculation and time profiles.
Supplied with:
Chinese fonts must be installed separately if needed.
Korean fonts must be installed separately if needed.
Japanese fonts must be installed separately if needed.
Copy file to root folder on the SD card. See Installing Nor145 version above.
This service pack is required for Nor145 application 4.0.5410.
Copy file to root folder on the SD card. See Installing Nor145 version above.
Copy file to root folder on the SD card. See Installing Nor145 version above.
This service pack is required for Nor145 application 5.0.4210.
NOTE! You have to upgrade your NorConnect software to v. 5.0.240124 or newer.
Copy file to root folder on the SD card. See Installing Nor145 version above.
Contact distributor regarding price for V5.
Copy file to root folder on the SD card. See Installing Nor145 version above.
This service pack is required for Nor145 application 6.0.1531.
NOTE! You have to upgrade your NorConnect software to v. 5.0.240124 or newer.
Copy file to root folder on the SD card. See Installing Nor145 version above.
Contact distributor regarding price for V6.
NOTE:
Installing Nor145 version:
Copy Service pack and application package to the SD card.
If a new license is needed: Copy License.txt to the same SD card.
Insert the SD card in your Nor145 instrument and power the instrument.
Follow the instructions in the installation process.
Please note! Instruments sold in France, Austria, Germany, Spain and Switzerland is subjected to use pattern evaluated software only. Users in these countries are requested to contact their local Norsonic representative to get the current type approved version.
Achtung! In Deutschland, Österreich, Spanien und der Schweiz unterliegen Schallmessgeräte einer Bauartzulassung / Baumusterprüfung. Die Firmware des Messgerätes ist Bestandteil dieser Bauartzulassung. Führen Sie daher bitte selber kein Firmware-Update durch, sondern wenden sich bei Interesse / Fragen an Ihren lokalen Norsonic-Vertreter!
Attention ! Les instruments vendus en France, Suisse, Allemagne, Autriche et Espagne doivent être configurés exclusivement avec le logiciel homologué. Dans ces pays, les utilisateurs sont priés de contacter leur représentant local Norsonic pour obtenir la version actuelle approuvée.
Por favor, tenga en cuenta que los instrumentos vendidos en España, Austria, Alemania y Suiza deben usarse exclusivamente con el software evaluado en el examen de modelo. Se sugiere a los usuarios de estos países que contacten con los distribuidores locales para obtener la versión aprobada en la actualidad.
